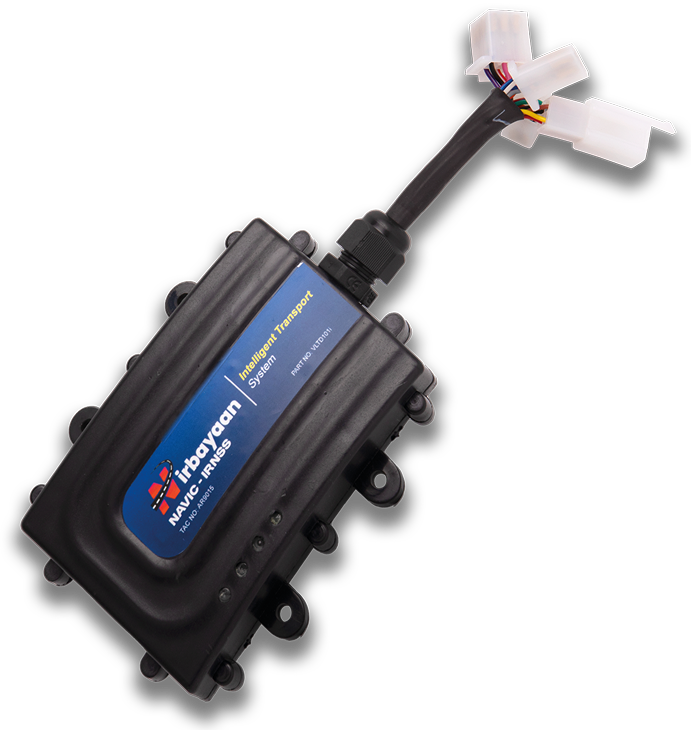

AIS 140 GPS Tracking Device
Designed to meet Indian government AIS 140 standards, this GPS tracker offers real-time location tracking, fleet monitoring, and regulatory compliance.
Enquire
5000
Internal Data Storage
IP 65
Dust And Waterproof
SOS
Emergency Calls
Product Usage
Ideal for commercial fleets, taxis, buses, logistics companies, and government-mandated vehicle tracking systems
Commercial Fleet
Taxis
Logistics
Features
IRNSS+GPS+AGPS Tracking
Allow the location to be pinpointed in real time or periodically
Tracked by: SMS, APP, Web
Reports location in real time through different interfaces
Remote Cut-Off (petrol/power)
Compel the vehicle to stop by breaking off the fuel connection
Multiple I/Os
Digital Input/Output for remote monitoring and control
IP 65 Dust & Waterproof
Water-resistant to ensure stable operation in tough environment
50000 Internal Data Storage
Memorize a large amount of GPS data for history review
Multiple Alarms
Instant alert for power off, GEOF
ACC Detection For Ignition Status
Be aware of the ignition status whenever you need
SOS Emergency Call
In case of emergency, Press the SOS button to trigger an urgent call
Multiple Alarms
Instant alerts for SOS, overspeed, low battery, vibration, etc
Door Status Detection
Get instant alert when your car's door is open unexpectedly
RS:232 Serial Communication UI
Support Fuel level sensor, RFID reader
Specifications
Parameter
Description
Chipset
M0A23EC1AC
Memory
128 MB Solid State Flash
GSM Module
EGSM900/DCS 1800 Dual Band or GSM850/1900 or Quad Band
GNSS Module
GPS
Antennae
PCB Antenna
Communication Interface
TCP/IP on GPRS
Record Storage/buffer
40000 Tracking Records
Ports
2 Analog Input
Speed Sensor
GNSS (default)
SIM Interface
Supports Embedded Sim
GPRS Packet Data
Class 10; Class 8 (Optional)
LED Indication
GSM
Connectors
17 Pin Connector
Power Supply
Wide DC Input Voltage Range (6V-100V)
Internal Battery
850mAh
Enclosure
PC-ABS Plastic Casing with IP66 Rating
Temperature
Operating: -250C to +850C
Storage
-250C to +850C (Without Battery)
Dimension
L-6.6 cm
