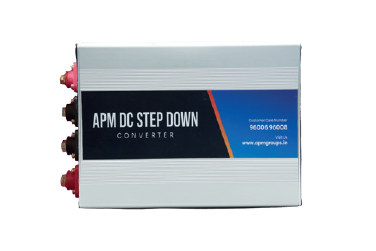

DC to DC Converter

Designed to convert high DC voltage to lower DC voltage with stable output, this compact and efficient converter ensures smooth performance across critical electronics.
Icon Enquire
Product Image Reflection
Logo
96%
Conversion Efficiency
< 1%
Voltage Regulation
< 2%
Load Regulation
Verticals > B2B > DC to DC Converter
Product Usage
Step down high-voltage DC to stable, regulated low-voltage DC for safe, efficient power in diverse sectors.
ProductUsage1
complaience ev charging
ProductUsage2
Powering Smart Devices
ProductUsage3
EV Charging Support
Features
Feature Image
Full Power Stability
Ensures consistent and reliable output without fluctuations. Ideal for applications where uninterrupted performance is critical.
Feature Image
High Conversion Efficiency
Converts input power to usable output with minimal loss. Maximizes energy savings and reduces heat generation.
Feature Image
Industrial-Grade Performance
Built to meet rigorous industry standards. Delivers durability and reliability even in harsh environments.
Feature Image
Multiple Industry Applications
Suitable for automotive, telecom, IoT, and industrial uses. Provides flexibility for diverse power conversion needs.
Feature Image
Non-Isolated Module
Compact design without galvanic isolation. Enables efficient power transfer at a lower cost.
Feature Image
Ultra-Compact Design
Space-saving form factor for easy integration. Perfect for devices with limited installation space.
Feature Image
Waterproof & Shockproof
Engineered to withstand moisture, dust, and vibration. Guarantees stable performance in outdoor and rugged conditions.
Feature Image
Wide Input Voltage Range
Supports a broad spectrum of input voltages. Enhances compatibility with various power sources.
Specifications
Product Image
Parameter
Description
Product Name
2400W dc 24v set down buck
Input Rated Voltage
24V DC
Input Voltage Range
18-35V DC
Conversion Efficiency
96%
Output Voltage
12V DC
Output Current
200 Amps
Output Rated Power
2400 Watts
Voltage Regulation
< 1%
Load Regulation
< 2%
Ripple (Full Load Test)
< 120mV
No-load Current
50mA -60mA
Working Temperature
-400c~+800c
Waterproof Rating
IP 68
Protections
Over-load/ Over-current/ Over-temperature/ Over-voltage
Machine Size
300*195*88mm
N.Weight
6 kg
